MH1812

Discrete Mathematics

Graph Theory

Graph G=(V,E),with set V of vertices/nodes, set E of edges.\text{Graph } G = (V,E), \text{with set } V \text{ of vertices/nodes, set } E \text{ of edges.}

If edge e connects vertices u,v, then u&v are adjacent, and e is incident with u&v.\text{If edge e connects vertices }u, v, \text{ then }u \ \& \ v \text{ are adjacent, and } e \text{ is incident with }u \ \& \ v.

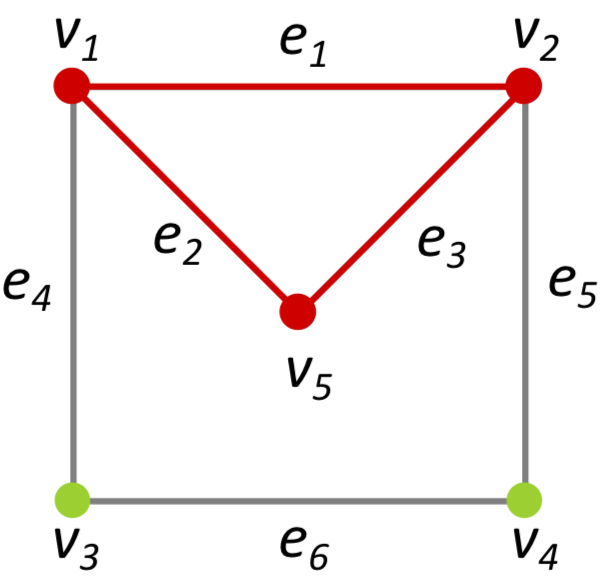

Subgraph

H=(VH,EH) is subgraph of G=(VG,EG), if VH⊆VG,EH⊆EG.H = (V_H, E_H) \text{ is subgraph of } G = (V_G, E_G), \text{ if } V_H \subseteq V_G, E_H \subseteq E_G.

Every edge must be connected to its vertices, but not every vertex must be connected.

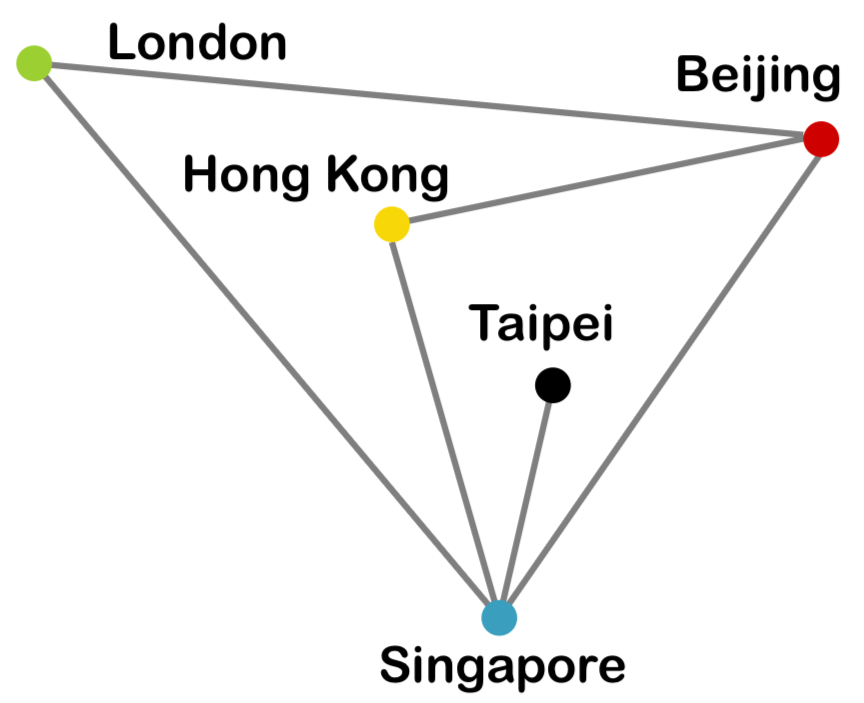

Simple graph

No loops (e={u,v}, u=v).

No parallel edges.

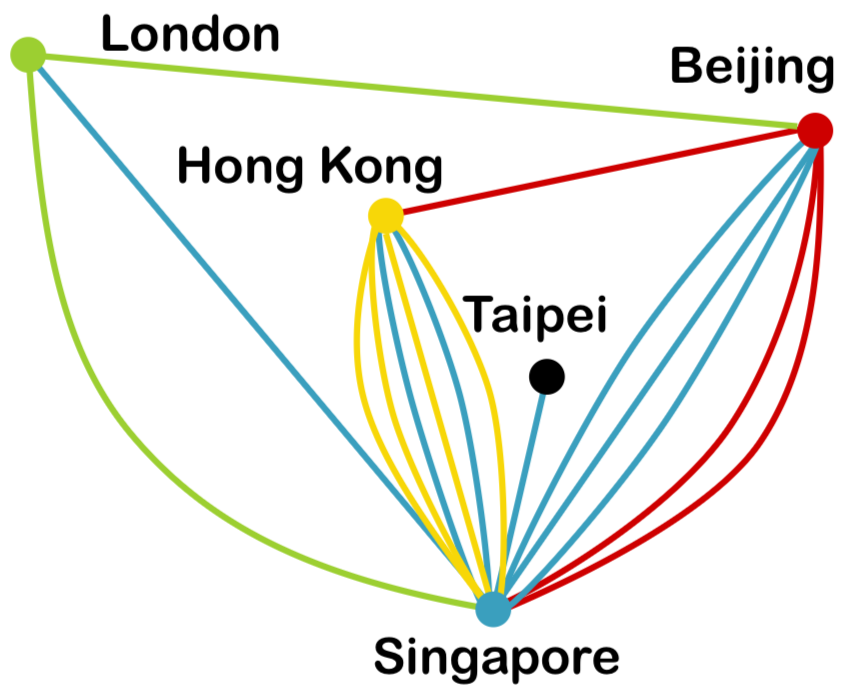

Multigraph

No loops.

At least two parallel edges between some pair of vertices.

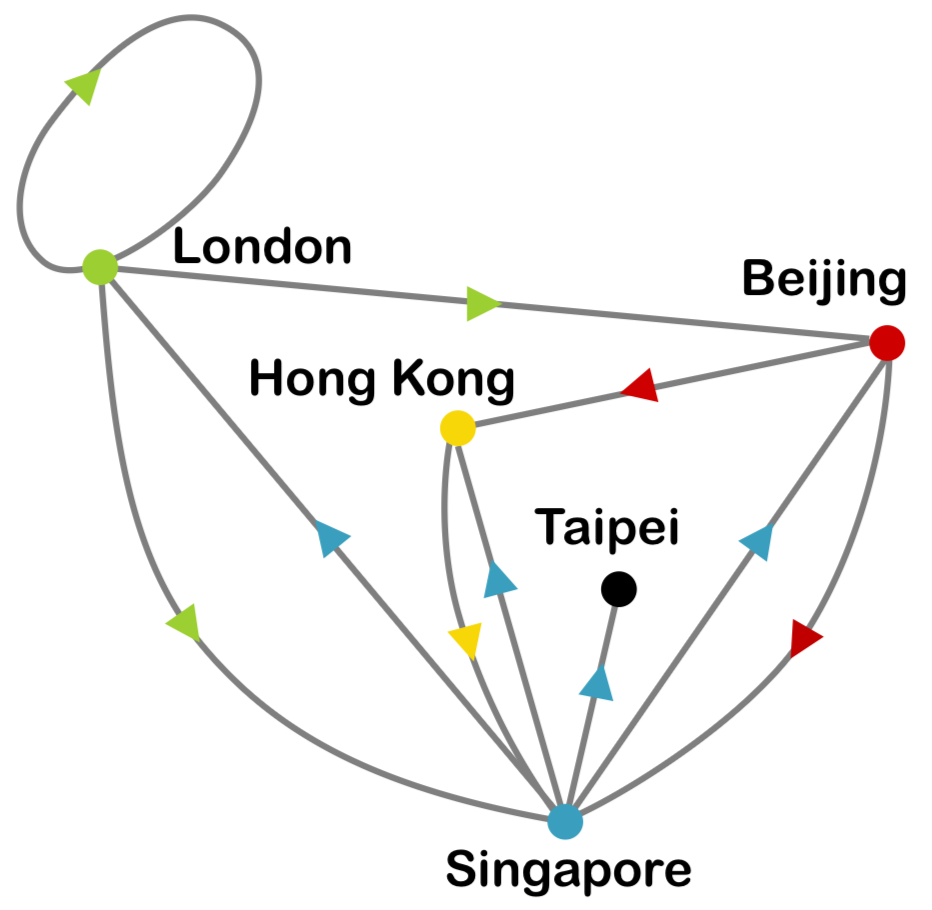

Directed graph

Edges are ordered (have a direction).

Loops and parallel edges are allowed.

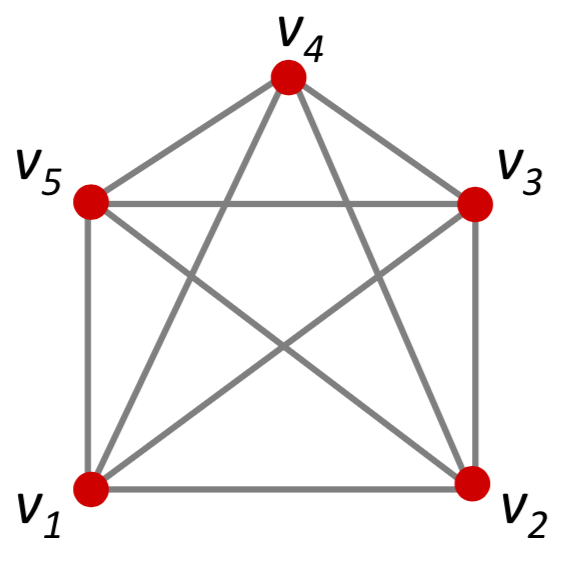

Complete graph

Simple graph + every vertex is adjacent to every other distinct vertex.

Number of vertices = nC2

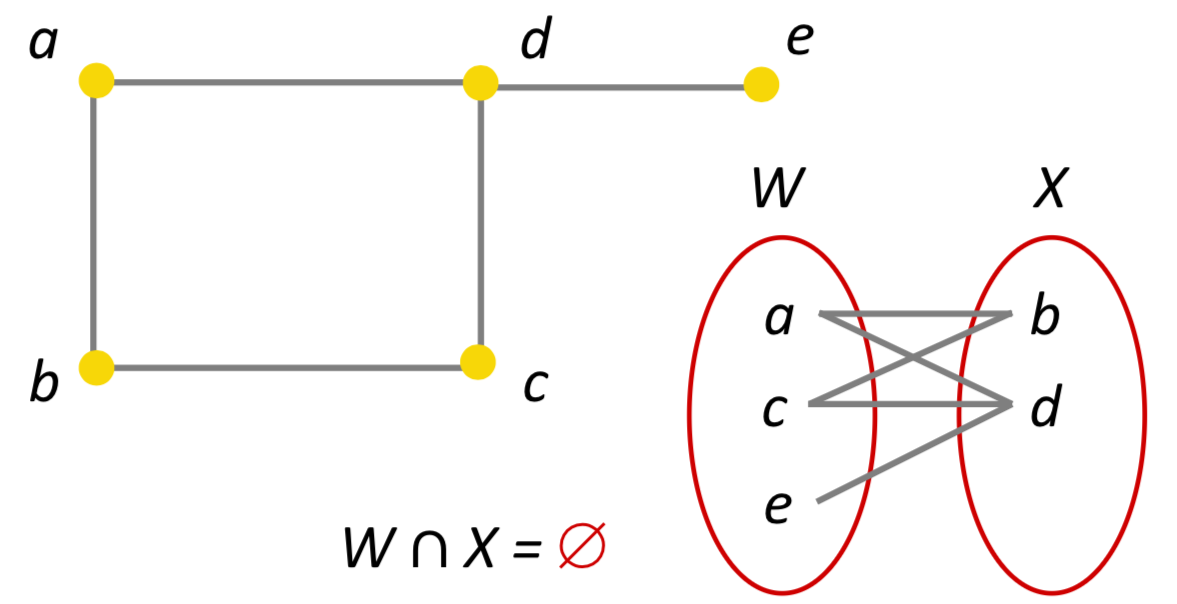

Bipartite graph

Vertices can be partitioned into 2 disjoint subsets W,X,\text{Vertices can be partitioned into 2 disjoint subsets } W, X,

s.t. each edge connects w∈W to x∈X.\text{ s.t. each edge connects } w \in W \text{ to } x \in X.

Use the 2 colour method to determine if a graph is bipartite

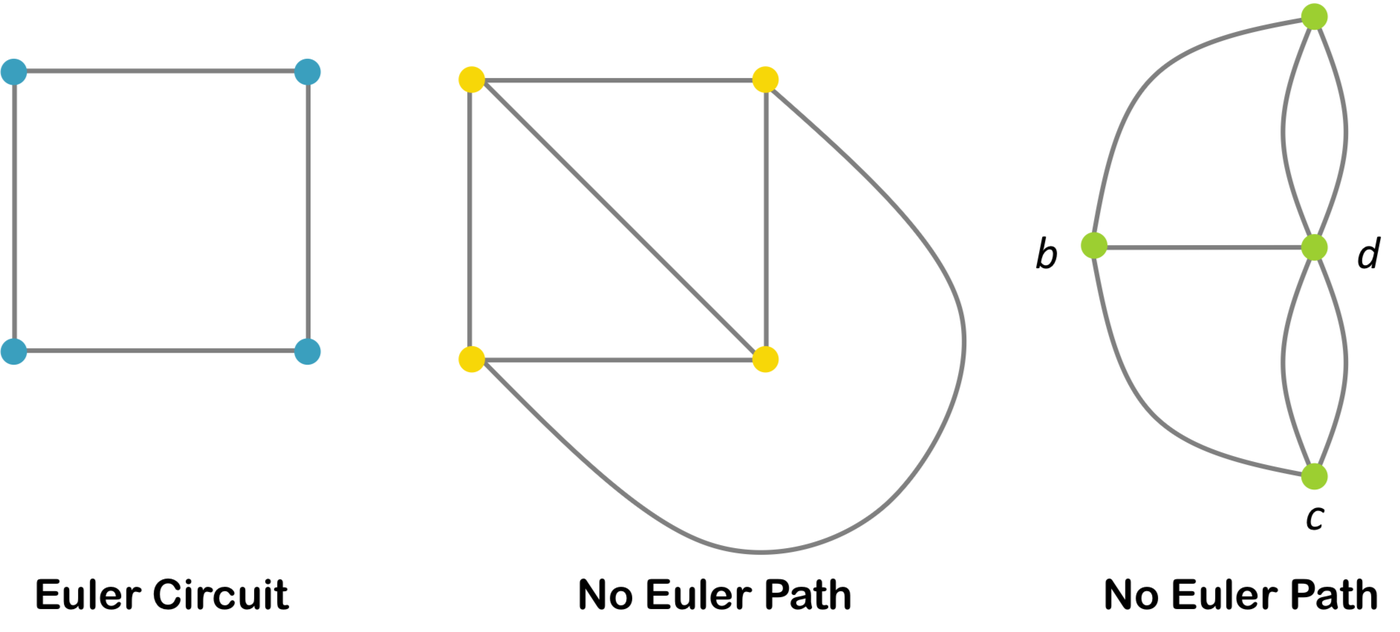

Euler paths/circuits

Euler path - a walk in a graph that visits every edge exactly once.

Euler circuit - a walk in a graph that visits every edge exactly once & starts and ends at the same vertex.

Euler circuits are a subset of Euler paths.

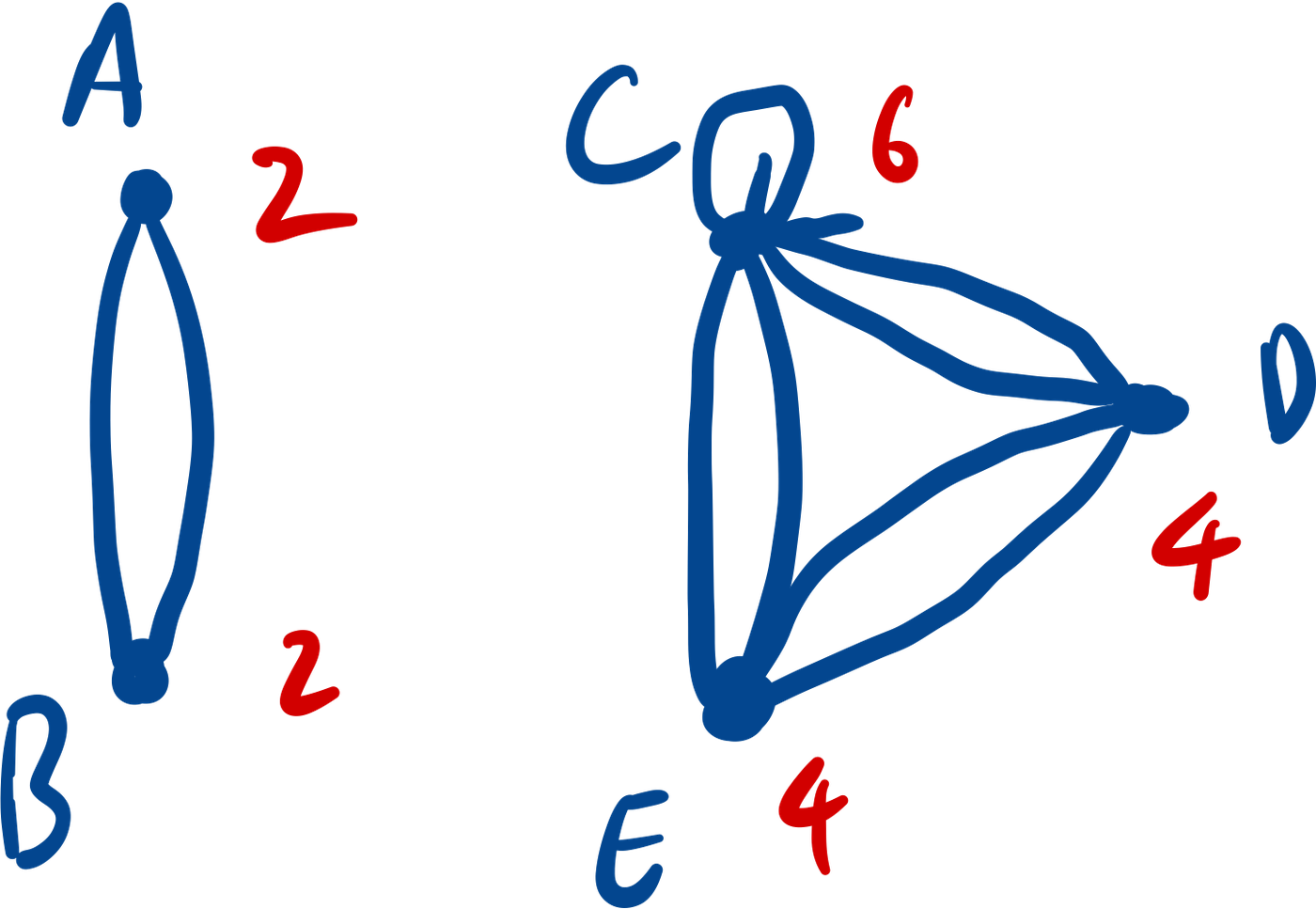

Euler’s Theorem

A graph has an Euler circuit iff

An connected graph has an Euler path if it has either 0 or 2 vertices with odd degrees.

An unconnected graph with all vertices having even degrees may not have an Euler circuit.

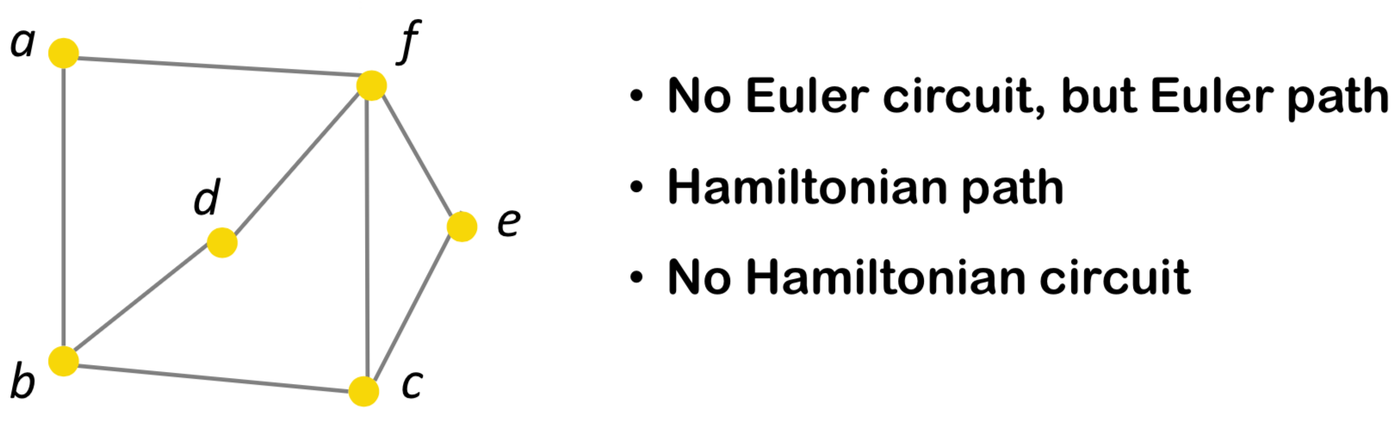

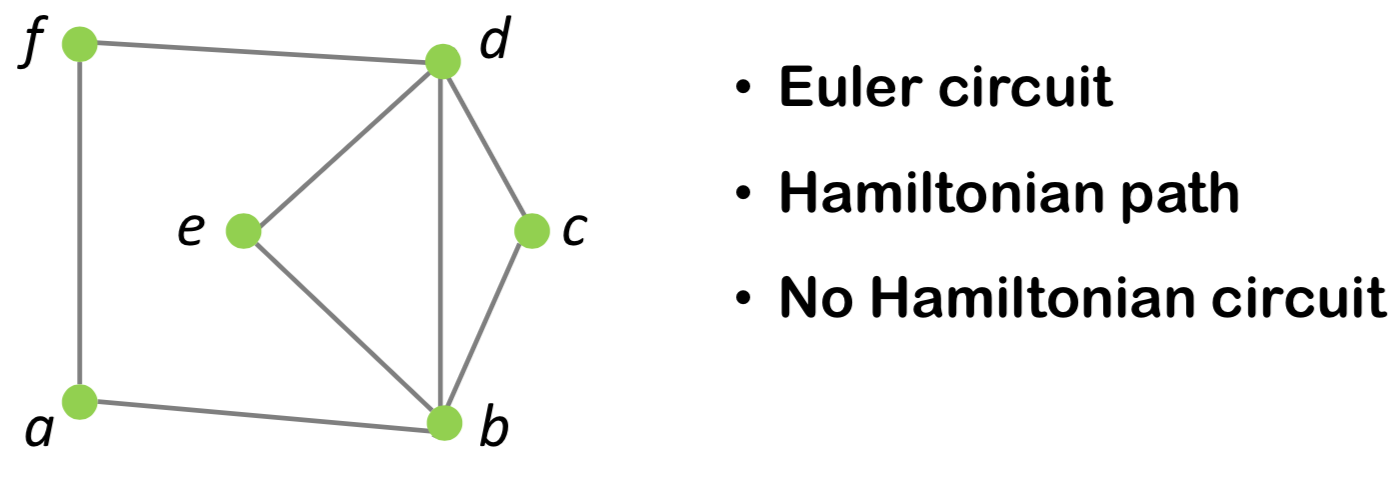

Hamiltonian path/circuit

Hamiltonian path - a walk in a graph that visits every vertex exactly once.

Hamiltonian circuit - a closed walk in a graph that visits every vertex exactly once & starts and ends at the same vertex.

Handshaking theorem

For a graph G=(V,E), with e edges, then\text{For a graph }G = (V, E), \text{ with } e \text{ edges, then}

∑v∈Vdeg(v)=2e\sum_{v \in V} \text{deg}(v) = 2e

Because every edge e={u,v} contributes 1 to deg(u) and 1 to deg(v), even if u=v.\text{Because every edge } e=\{u,v\} \text{ contributes } 1 \text{ to deg}(u) \text{ and } 1 \text{ to deg}(v), \text{ even if } u=v.

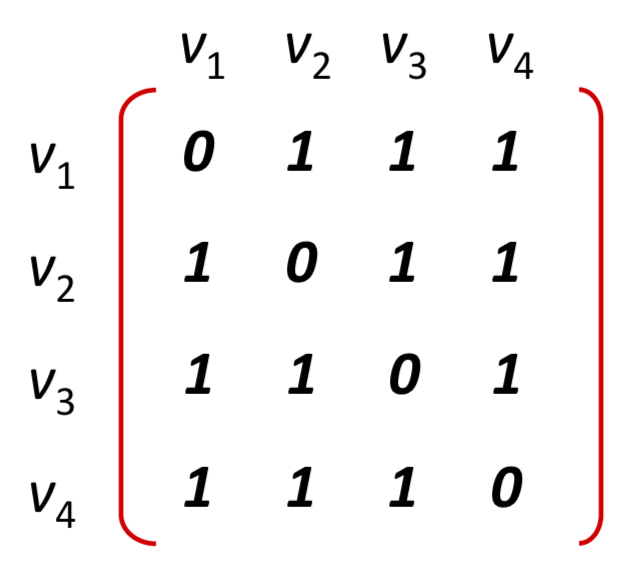

Adjacency matrix

aij= number of arrows from vertex vi to vj.a_{ij} = \text{ number of arrows from vertex }v_i \text{ to }v_j.

For undirected graph, adjacency matrix is symmetric along the negative diagonal.

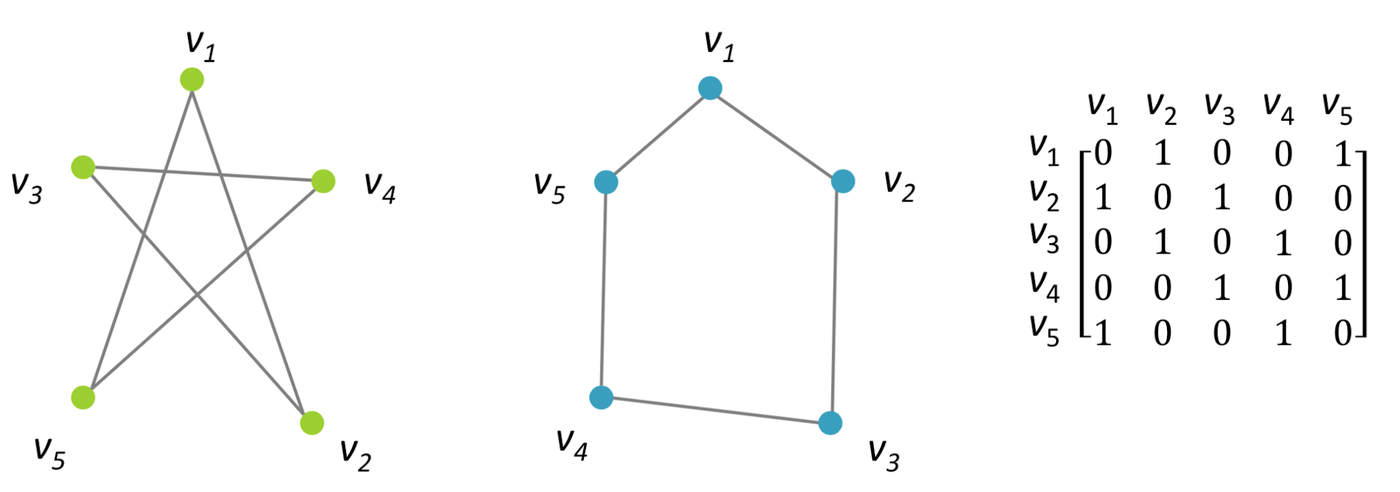

Isomorphic graphs

Graphs G=(VG,EG),H=(VH,EH) are isomorphic iff\text{Graphs }G = (V_G, E_G), H = (V_H, E_H) \text{ are isomorphic iff}

there are two bijective functions

g:VG⇒VH and h:EG⇒EHg: V_G \Rightarrow V_H \text{ and } h: E_G \Rightarrow E_H

such that an edge e∈EG,e={v,w},v,w∈VG⇔edge h(e)∈EH,h(e)={g(v),g(w)}.\text{such that an edge }e \in E_G, e=\{v, w\}, v, w \in V_G \iff \text{edge } h(e) \in E_H, h(e)=\{g(v), g(w)\}.

**i.e. any two vertices v and w are adjacent in G if and only if g(v) and g(w) are adjacent in H.

How to tell if not isomorphic
