2 Data Organisation in Memory

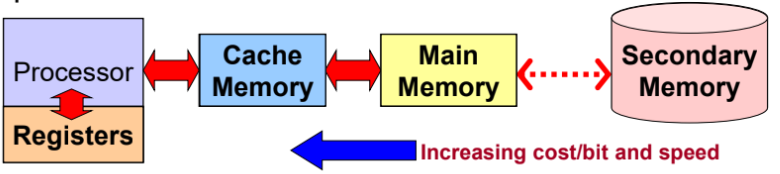

2.1 Memory Hierarchy

1. Registers Very fast access, but limited numbers within the CPU (2-128 registers). Operates at CPU clock rate.

2. Cache memory Fast access static RAM close to CPU. Typical access time 3-20ns, size up to 512kB.

3. Main memory Dynamic RAM or ROM. Typical access time 30-70nS, size up to 16GB.

4. Secondary memory Not always random access but non-volatile. Maybe be based on magnetic or flash technology. Typical access time 0.03-100mS, size: up to 4TB.

2.1.1 Main Memory

• Each address location is byte-size (8 bits).

• The memory size (the number of addresses) i.e. $2^n$ bytes, is dependent on the number of lines $n$ in the address bus.

• Based on Von Neumann’s architecture, the memory stores both code (instructions) and data.

2.2 Number representation

Note:

• Integers can be signed or unsigned.

• Floating point numbers are always signed.

2.2.1 Two ways of storing a multi-byte number

• Little Endian - LSB at lowest address.

• Big Endian - MSB at lowest address.

2.3 Character Representation

A char requires one byte (8 bits) of memory. The binary data is transformed to some representative characters through some encoding standard.
Some encoding standards:

• 7-bit ASCII code

• DEC’s Sixbit (6-bit)

• IBM’s EBCDIC (8-bit)

• Unicode (16-bit)

Note that lower and upper case characters and digits are contiguous.

Boolean variables have 2 states:

1. False = 0

2. True = non-zero

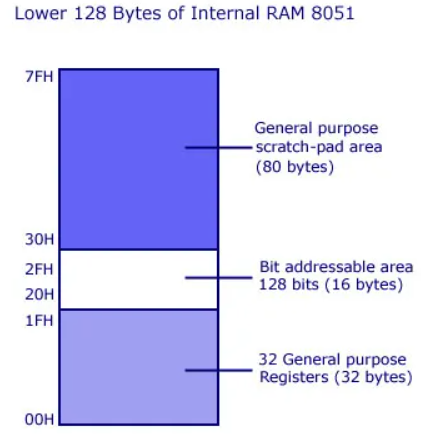

Most implementations use one byte (8 bits) to store a 1-bit Boolean value (inefficient). Some processors like the 8051 support a small portion of bit-addressable memory.

2.4 Array, String and Structure Representations

2.4.1 Arrays

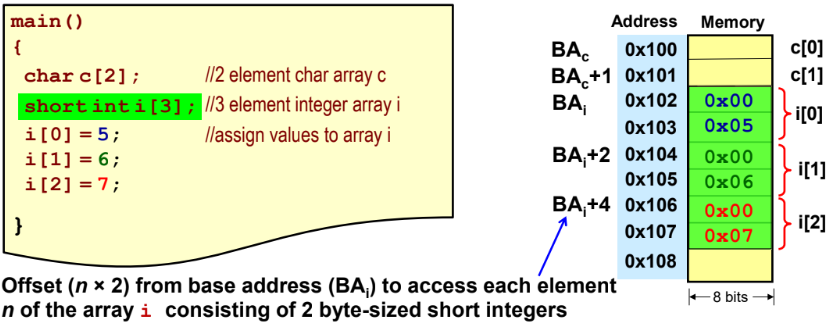

A linear array is a consecutive area in memory storing a homogenous data type.

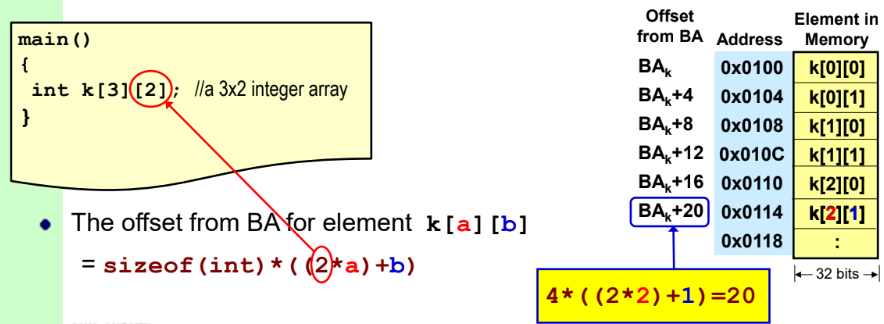

Elements are accessed through some offset from the base address.

2.4.2 Strings

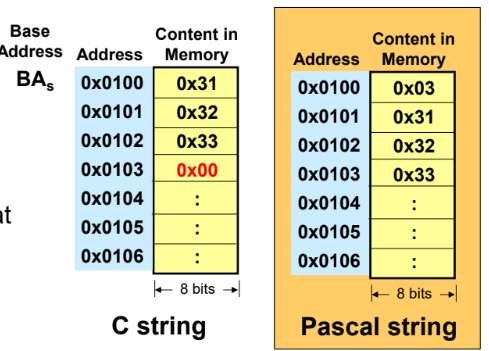

• C strings have no length limit, whereas Pascal strings are limited to number of bytes used to store the length (e.g. 1 byte $\rightarrow$ max 255 characters.)

• C strings have no overhead (only one byte for \0) for length metadata, Pascal strings require space to store the length prefix.

• Determining length of C string is O(n), for Pascal string is O(1).

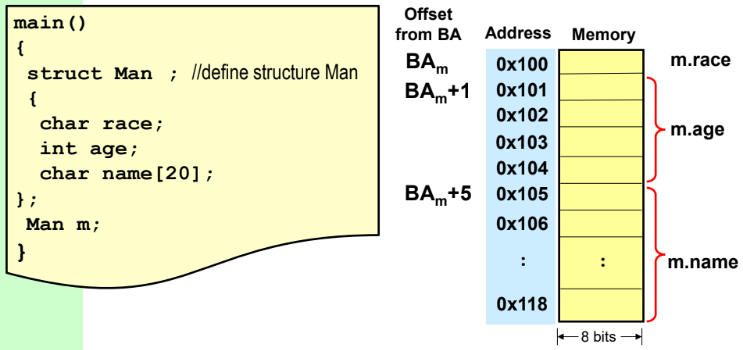

2.4.3 Structures

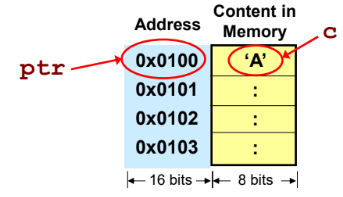

2.5 Pointer representation

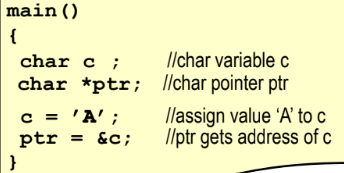

Use *ptr to dereference a pointer.

2.6 Data Alignment

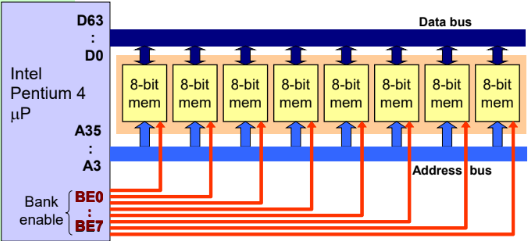

Assuming a 64-bit processor that uses 64-bits to represent an address.

• 64-bit data bus $\rightarrow$ The CPU fetches 64-bits every memory cycle.

• 33 address pins $\rightarrow$ There are $2^33$ 8 byte "blocks".

• 8 Bank Enable pins select which 8-bits in that 64-bits block to read from.

• The CPU has a 64-bit data word size.

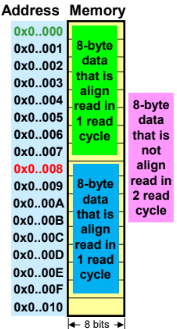

• Since the CPU fetches 8 bytes at a time, any 8-byte data that is not aligned needs two memory cycles to be fetched.

• If a processor has an 8 bit (1 byte) data bus, there won’t be any alignment issues.
  Multi-byte data takes the same number of cycles to be fetched, regardless of the memory address.

• If a processor has a 16 bit (2 bytes) data bus, then 2, 4 or 8 byte data should be aligned to even addresses.

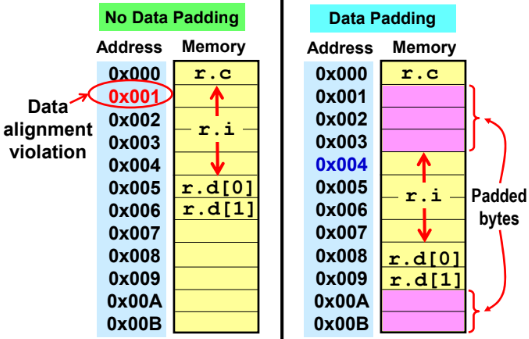

2.6.1 Data alignment in structures
