12 Game Trees - Backward Induction

# Zermelo's Algorithm
done ← leaves((S, E))
while done ≠ S:
    next ← { s' ∈ S ∖ done | children(s', (S, E)) ⊆ done }
    for s ∈ next:
        i ← owner(s)
        C ← children(s, (S, E))
        O ← arg max_{s' ∈ C} uᵢ(s')          # optimal choices
        s'' ← any element of O
        for j ∈ N:
            uⱼ(s) ← uⱼ(s'')                   # back utilities up
        done ← done ∪ {s}                     # we have processed s

Extensive form games are games that are played sequentially. It can be defined by $$G = (N, (S, E, s_0), owner, a, u_1,\ldots,u_n)$$

• $N = \{1,\ldots,n\}$ is the set of players

• $(S, E, s_0)$ is a finite tree with vertex set $S$, edge set $E \subset S \times S$, and root $s_0 \in S$.

• $owner: interior((S, E))\rightarrow N$ specifies the owner of each decision node

• $a: E \rightarrow A$ associates each edge $(s, s') \in E$ with an action

• $u_i : leaves((S, E))\rightarrow\mathbb{R}$ is $i$’s utility function.

Zermelo’s Algorithm / backward induction can solve extensive form games

• Is guaranteed to terminate

• runs in time polynomial in the size of the game tree, $O(b^d)$

• finds optimal strategies for both players

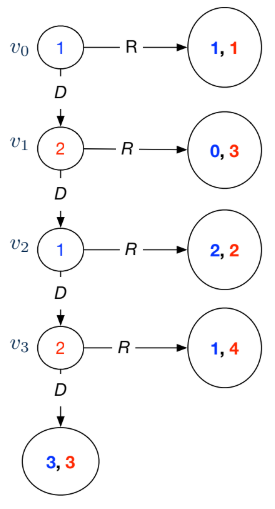

Example Centipede Game

Based on Zermelo’s Algorithm,

1. At $v_3$, Player 2 chooses $R$, since 4>3. $v_3$ effectively becomes the payoff (1, 4).

2. At $v_2$, Player 1 chooses $R$, since 2>1. $v_2$ effectively becomes the payoff (2, 2).

3. At $v_1$, Player 2 chooses $R$, since 3>2. $v_1$ effectively becomes the payoff (0, 3).

4. At $v_0$, Plyaer 1 chooses $R$, since 1>0. $v_0$ effectively becomes the payoff (1, 1).

Based on backward induction, when both players are perfectly rational and can predict each other’s moves, Player 1 just chooses $R$ and stops the game.
The paradox is that they could each have had a greater payoff of (3, 3) if they trusted each other (deviating from the rational path) and played $D$ all the way.
