4 Inverse of a Matrix

If $A$ is an invertible $n\times n$ matrix, then for each $\mathbf{x}$ in $\mathbb{R}^n$, the equation $A\mathbf{x} = \mathbf{b}$ has the unique solution $$\mathbf{x} = A^{-1}\mathbf{b}$$ Proof

1. Show that solution exists
   Substitute $A^{-1}\mathbf{b}$ into $A\mathbf{x}=\mathbf{b}$,
   LHS = $A\mathbf{x}=A(A^{-1})\mathbf{b}=(AA^{-1})\mathbf{b}=I\mathbf{b}=\mathbf{b}$ = RHS.

2. Show that solution is unique.
   Suppose there is some vector $u$ such that $A\mathbf{u}=\mathbf{b}$,
   then $A^{-1}A\mathbf{u}=A^{-1}\mathbf{b} \Rightarrow I\mathbf{u}=A^{-1}\mathbf{b} \Rightarrow \mathbf{u}=A^{-1}\mathbf{b}$.

Property: If $A$ is invertible, then $A^{-1}$ is invertible, and $$(A^{-1})^{-1}=A$$

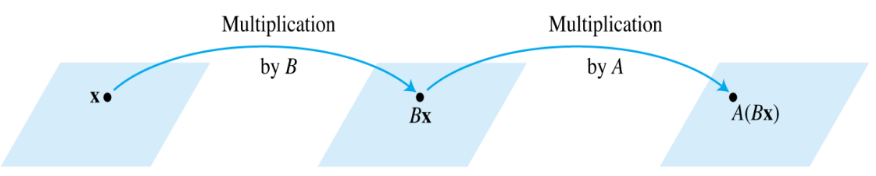

Property: If $A$ and $B$ are $n\times n$ invertible matrices, then so is $AB$ and $$(AB)^{-1}=B^{-1}A^{-1}$$

Proof
To find some matrix $C$ s.t. $(AB)C=I$ and $C(AB)=I.$
If $C=B^{-1}A^{-1}$, then $AB(B^{-1}A^{-1})=A(BB^{-1})A^{-1}=AIA^{-1}=AA^{-1}=I$.
Similar argument applies for $(B^{-1}A^{-1})(AB)=I$.

Property: If $A$ is an invertible matrix, then so is $A^T$, and $$(A^T)^{-1}=(A^{-1})^T$$ Proof
To show that $(A^{-1})^T$ is the inverse of $A^T$.
Considering the product of $A^T$ and $(A^{-1})^T$, $$A^T(A^{-1})^T=(A^{-1}A)^T=I^T=I$$ and the product of $(A^{-1})^T$ and $A^T$, $$(A^{-1})^TA^T=(AA^{-1})^T=I^T=I$$

4.1 Elementary matrix

An elementary matrix $E$ is created by performing exactly one elementary row operation on an identity matrix $I$.
Multiplying a matrix $A$ by $E$ on the left ($EA$) performs that same row operation on $A$.

For example, $$E = \begin{bmatrix} 0 & 1 & 0 \\ 1 & 0 & 0 \\ 0 & 0 & 1 \end{bmatrix} \text{ and }A=\begin{bmatrix} a & b & c \\ d & e & f \\ g & h & i \end{bmatrix}\Rightarrow EA=\begin{bmatrix} d & e & f \\ a & b & c \\ g & h & i \end{bmatrix}$$ Every elementary matrix is invertible, and the inverse is another elementary matrix that reverses the original transformation. For example, $$E_1=\begin{bmatrix} 0 & 1 & 0 \\ 1 & 0 & 0 \\ 0 & 0 & 1 \end{bmatrix} \Rightarrow E_1^{-1}=\begin{bmatrix} 0 & 1 & 0 \\ 1 & 0 & 0 \\ 0 & 0 & 1 \end{bmatrix}$$ $$E_2=\begin{bmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ -4 & 0 & 1 \end{bmatrix} \Rightarrow E_2^{-1}=\begin{bmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 4 & 0 & 1 \end{bmatrix}$$

An $n\times n$ matrix $A$ is invertible iff $A$ is row equivalent to $I_n$. The same sequence of EROs that reduces $A$ to $I_n$ transforms $I_n$ to $A^{-1}$.

Proof
Suppose $A$ is an invertible $n\times n$ matrix, then $A\mathbf{x}=\mathbf{b}$ has a unique solution for any $\mathbf{b}$. This means the RREF form of $A$ has a pivot in every row and column. For a $n\times n$ matrix, this has to be $I_n$. Therefore $A$ is row equivalent to $I_n$.
There exists some sequence of EROs that transforms $A$ to $I_n$, and each row operation corresponds to multiplication by an elementary matrix. This can be expressed as $$(E_k\cdots E_2E_1)A=I_n$$ $A$ is invertible since RHS=$I_n$ is invertible and the product of elementary matrices is invertible.
Multiplying by $A^{-1}$ on the right on both sides, $$(E_k\cdots E_2E_1)=A^{-1}$$ Therefore, $$(E_k\cdots E_2E_1)I_n=A^{-1}$$

4.1.1 Example

To find the inverse of $A = \begin{bmatrix} 0 & 1 & 2 \\ 1 & 0 & 3 \\ 4 & -3 & 8 \end{bmatrix}$, we augment it with the identity matrix $I$ and perform Gauss-Jordan elimination:

$$\left[ \begin{array}{ccc|ccc} 0 & 1 & 2 & 1 & 0 & 0 \\ 1 & 0 & 3 & 0 & 1 & 0 \\ 4 & -3 & 8 & 0 & 0 & 1 \end{array} \right]$$

Step 1: Interchange $R_1$ and $R_2$ ($R_1 \leftrightarrow R_2$) $$\xrightarrow{R_1 \leftrightarrow R_2} \left[ \begin{array}{ccc|ccc} 1 & 0 & 3 & 0 & 1 & 0 \\ 0 & 1 & 2 & 1 & 0 & 0 \\ 4 & -3 & 8 & 0 & 0 & 1 \end{array} \right]$$

Step 2: Eliminate $a_{31}$ ($R_3 \leftarrow R_3 - 4R_1$) $$\xrightarrow{R_3 - 4R_1} \left[ \begin{array}{ccc|ccc} 1 & 0 & 3 & 0 & 1 & 0 \\ 0 & 1 & 2 & 1 & 0 & 0 \\ 0 & -3 & -4 & 0 & -4 & 1 \end{array} \right]$$

Step 3: Eliminate $a_{32}$ ($R_3 \leftarrow R_3 + 3R_2$) $$\xrightarrow{R_3 + 3R_2} \left[ \begin{array}{ccc|ccc} 1 & 0 & 3 & 0 & 1 & 0 \\ 0 & 1 & 2 & 1 & 0 & 0 \\ 0 & 0 & 2 & 3 & -4 & 1 \end{array} \right]$$

Step 4: Scale $R_3$ to get a leading 1 ($R_3 \leftarrow \frac{1}{2}R_3$) $$\xrightarrow{\frac{1}{2}R_3} \left[ \begin{array}{ccc|ccc} 1 & 0 & 3 & 0 & 1 & 0 \\ 0 & 1 & 2 & 1 & 0 & 0 \\ 0 & 0 & 1 & 1.5 & -2 & 0.5 \end{array} \right]$$

Step 5: Eliminate $a_{13}$ and $a_{23}$ ($R_1 \leftarrow R_1 - 3R_3$ and $R_2 \leftarrow R_2 - 2R_3$) $$\xrightarrow{\substack{R_1 - 3R_3 \\ R_2 - 2R_3}} \left[ \begin{array}{ccc|ccc} 1 & 0 & 0 & -4.5 & 7 & -1.5 \\ 0 & 1 & 0 & -2 & 4 & -1 \\ 0 & 0 & 1 & 1.5 & -2 & 0.5 \end{array} \right]$$

Therefore, the inverse matrix is $$A^{-1} = \begin{bmatrix} -4.5 & 7 & -1.5 \\ -2 & 4 & -1 \\ 1.5 & -2 & 0.5 \end{bmatrix}$$

4.1.2 Invertible Matrix Theorem

Let $A$ be an $n\times n$ matrix. Then the following statements are logically equivalent:

1. $A$ is an invertible (non-singular) matrix.

2. $A$ is row equivalent to $I_n$.

3. $A$ has $n$ pivot positions.

4. $A\mathbf{x}=\mathbf{0}$ has only the trivial solution.

5. The columns of $A$ form a linearly independent set.

6. $A\mathbf{x}=\mathbf{b}$ has at least one (in fact, unique) solution for each $\mathbf{b}$ in $\mathbb{R}^n$.

7. The columns of $A$ span $\mathbb{R}^n$.

8. There is an $n\times n$ matrix $C$ such that $CA=I$.

9. There is an $n\times n$ matrix $D$ such that $AD=I$.

10. $A^T$ is an invertible matrix.

11. The columns of $A$ form a basis for $\mathbb{R}^n$.

12. $\mathbf{C}(A) = \mathbb{R}^n$.

13. $\dim \mathbf{C}(A) = n$.

14. Rank of $A = n$.

15. $\mathbf{N}(A) = \{\mathbf{0}\}$.

16. $\dim \mathbf{N}(A) = 0$.

: $A\mathbf{x}=\mathbf{0}\Rightarrow\mathbf{x}=A^{-1}\mathbf{0}$.

$8\Rightarrow 4$: Given $C$ such that $CA=I$, $$CA\mathbf{x}=C\mathbf{0}\Rightarrow I\mathbf{x}=\mathbf{0}\Rightarrow\mathbf{x}=\mathbf{0}$$ $9\Rightarrow 6$: Given $D$ such that $AD=I$, choose $\mathbf{x}=D\mathbf{b}$, $$A\mathbf{x}=AD\mathbf{b}=I\mathbf{b}=\mathbf{b}$$

5 Matrix Factorisation

To solve sequence of equations like $Ax=b_1, Ax=b_2,\ldots, Ax=b_p$, it is inefficient to first compute the inverse $A^{-1}$ and then multiply it by each vector, $A^{-1}b_{1}, ..., A^{-1}b_{p}$.

Instead, the efficient solution is to decompose $A_{m \times n}$ into $L_{m \times m}U_{m \times n}$.

$$L = \begin{bmatrix} 1 & 0 & \cdots & 0 \\ l_{21} & 1 & \cdots & 0 \\ \vdots & \vdots & \ddots & \vdots \\ l_{m1} & l_{m2} & \cdots & 1 \end{bmatrix}, \qquad U = \begin{bmatrix} u_{11} & u_{12} & \cdots & u_{1n} \\ 0 & u_{22} & \cdots & u_{2n} \\ \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \cdots & u_{mn} \end{bmatrix}$$ where $L$ is unit lower triangular matrix, $U$ is upper triangular matrix.

5.1 Deriving L & U

Assumption $A$ can be reduced to echelon form without requiring any row interchanges.

First reduce matrix $A$ to $U$, using elementary row operations. Multiply $A$ by a sequence of unit lower triangular elementary matrices ($E_{1}, \dots, E_{p}$), such that

$$\begin{align*} & E_{p} \dots E_{1}A = U \\ \implies & A = (E_{p} \dots E_{1})^{-1}U \end{align*}$$ Then $L = E_{p} \dots E_{1}$.

Example Consider a $3 \times 3$ matrix: $$A = \begin{bmatrix} \mathbf{2} & -2 & 3 \\ \mathbf{6} & -7 & 14 \\ \mathbf{4} & -8 & 30 \end{bmatrix}$$

Step 1: Row Reduction to find $U$. Apply elementary row operations to eliminate the entries below the pivots to reach echelon form.

First Column: The first pivot is the $\mathbf{2}$ in row 1, column 1. Eliminate the entries below it. Multiply by $E_{21}$ (which represents $R_2 - 3R_1$): $$E_{21}A = \begin{bmatrix} 2 & -2 & 3 \\ 0 & \mathbf{-1} & 5 \\ 4 & -8 & 30 \end{bmatrix}$$ Multiply by $E_{31}$ (which represents $R_3 - 2R_1$): $$E_{31}(E_{21}A) = \begin{bmatrix} 2 & -2 & 3 \\ 0 & \mathbf{-1} & 5 \\ 0 & \mathbf{-4} & 24 \end{bmatrix}$$

Second Column: The new pivot is the $\mathbf{-1}$ in row 2, column 2. Eliminate the entry below it. * Multiply by $E_{32}$ (which represents $R_3 - 4R_2$): $$E_{32}(E_{31}E_{21}A) = \begin{bmatrix} 2 & -2 & 3 \\ 0 & -1 & 5 \\ 0 & 0 & 4 \end{bmatrix} = U$$

Step 2: Two Methods to Construct $L$

Since $A$ has 3 rows, $L$ will be a $3 \times 3$ unit lower triangular matrix.

Method 1: The "Multiplier" Method (Fastest).

At each pivot column, divide the eliminated entries by the pivot for that column, and place the result directly into $L$.

Column 1 Multipliers: The pivot is $\mathbf{2}$. Divide 6 and 4 by 2 respectively.

Column 2 Multipliers: The new pivot is $\mathbf{-1}$. Divide -4 by -1.

Placing these multipliers below the diagonal of 1s gives you $L$: $$L = \begin{bmatrix} 1 & 0 & 0 \\ \mathbf{3} & 1 & 0 \\ \mathbf{2} & \mathbf{4} & 1 \end{bmatrix}$$

Method 2: The Elementary Inverse Method. Mathematically, $L$ is formed by the inverse of the elementary matrices used to reach $U$: $L = E_{21}^{-1}E_{31}^{-1}E_{32}^{-1}$.

Construct $L$ by simply taking the nonzero off-diagonal elements of the elementary inverse matrices and placing them into the appropriate positions in $L$.

$$L = \begin{bmatrix} 1 & 0 & 0 \\ \mathbf{3} & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ \mathbf{2} & 0 & 1 \end{bmatrix} \begin{bmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & \mathbf{4} & 1 \end{bmatrix} = \begin{bmatrix} 1 & 0 & 0 \\ \mathbf{3} & 1 & 0 \\ \mathbf{2} & \mathbf{4} & 1 \end{bmatrix}$$

5.2 Solving using $L$ & $U$

$$\begin{align*} & Ax = b \\ \implies & LUx = b \end{align*}$$ Forward substitution Defining $y= Ux$, solve for $$Ly=b$$

Backward substitution Solve $$Ux=y$$

Example

Given the linear system $Ax = b$, where: $$A = \begin{bmatrix} 3 & -7 & -2 & 2 \\ -3 & 5 & 1 & 0 \\ 6 & -4 & 0 & -5 \\ -9 & 5 & -5 & 12 \end{bmatrix}, \qquad b = \begin{bmatrix} -9 \\ 5 \\ 7 \\ 11 \end{bmatrix}$$

Matrix $A$ has been factored into $L$ and $U$: $$L = \begin{bmatrix} 1 & 0 & 0 & 0 \\ -1 & 1 & 0 & 0 \\ 2 & -5 & 1 & 0 \\ -3 & 8 & 3 & 1 \end{bmatrix}, \qquad U = \begin{bmatrix} 3 & -7 & -2 & 2 \\ 0 & -2 & -1 & 2 \\ 0 & 0 & -1 & 1 \\ 0 & 0 & 0 & -1 \end{bmatrix}$$

Forward Substitution ($Ly = b$)

Set up the lower triangular system to solve for the intermediate vector $y$: $$\begin{bmatrix} 1 & 0 & 0 & 0 \\ -1 & 1 & 0 & 0 \\ 2 & -5 & 1 & 0 \\ -3 & 8 & 3 & 1 \end{bmatrix} \begin{bmatrix} y_1 \\ y_2 \\ y_3 \\ y_4 \end{bmatrix} = \begin{bmatrix} -9 \\ 5 \\ 7 \\ 11 \end{bmatrix}$$

Solve the equations sequentially from top to bottom: $$\begin{aligned} y_1 &= -9 \\ -y_1 + y_2 &= 5 &&\implies y_2 = -4 \\ 2y_1 - 5y_2 + y_3 &= 7 &&\implies y_3 = 5 \\ -3y_1 + 8y_2 + 3y_3 + y_4 &= 11 &&\implies y_4 = 1 \end{aligned}$$

This gives us our intermediate vector $y$: $$y = \begin{bmatrix} -9 \\ -4 \\ 5 \\ 1 \end{bmatrix}$$

Step 2: Backward Substitution ($Ux = y$)

Set up the upper triangular system using the newly found vector $y$ to solve for $x$: $$\begin{bmatrix} 3 & -7 & -2 & 2 \\ 0 & -2 & -1 & 2 \\ 0 & 0 & -1 & 1 \\ 0 & 0 & 0 & -1 \end{bmatrix} \begin{bmatrix} x_1 \\ x_2 \\ x_3 \\ x_4 \end{bmatrix} = \begin{bmatrix} -9 \\ -4 \\ 5 \\ 1 \end{bmatrix}$$

Solve the equations sequentially from bottom to top: $$\begin{aligned} -x_4 &= 1 &&\implies x_4 = -1 \\ -x_3 + x_4 &= 5 &&\implies x_3 = -6 \\ -2x_2 - x_3 + 2x_4 &= -4 &&\implies x_2 = 4 \\ 3x_1 - 7x_2 - 2x_3 + 2x_4 &= -9 &&\implies x_1 = 3 \end{aligned}$$

Final Solution: $$x = \begin{bmatrix} 3 \\ 4 \\ -6 \\ -1 \end{bmatrix}$$

5.3 Zero Pivots: $PA = LU$ Factorization

The standard $A = LU$ factorization assumes matrix $A$ can be reduced to echelon form without row interchanges. If a pivot becomes zero, you must swap rows, which breaks the standard algorithm.

To solve this, we pre-swap the rows of $A$ using a Permutation Matrix $P$, which is an Identity matrix with its rows swapped. This yields the generalized factorization: $$PA = LU$$

Example: Given matrix $A$: $$A = \begin{bmatrix} 1 & 1 & 1 \\ 1 & 1 & -1 \\ 2 & -1 & -1 \end{bmatrix}$$

If we attempt standard row reduction ($R_2 - R_1$ and $R_3 - 2R_1$), we hit a zero pivot in the second column: $$\begin{bmatrix} 1 & 1 & 1 \\ 0 & \mathbf{0} & -2 \\ 0 & -3 & -3 \end{bmatrix}$$

To fix this, we swap Row 2 and Row 3 using permutation matrix $P_{23}$: $$P = \begin{bmatrix} 1 & 0 & 0 \\ 0 & 0 & 1 \\ 0 & 1 & 0 \end{bmatrix}$$

Calculate $PA$ to generate the row-swapped matrix: $$PA = \begin{bmatrix} 1 & 0 & 0 \\ 0 & 0 & 1 \\ 0 & 1 & 0 \end{bmatrix} \begin{bmatrix} 1 & 1 & 1 \\ 1 & 1 & -1 \\ 2 & -1 & -1 \end{bmatrix} = \begin{bmatrix} 1 & 1 & 1 \\ 2 & -1 & -1 \\ 1 & 1 & -1 \end{bmatrix}$$

Now, factor $PA$ normally into $L$ and $U$: Using pivot 1 in column 1: $R_2 - \mathbf{2}R_1 \implies l_{21} = 2$, and $R_3 - \mathbf{1}R_1 \implies l_{31} = 1$. The entry below the second pivot ($-3$) is already $0 \implies l_{32} = 0$.

This gives our final $L$ and $U$ matrices for $PA$: $$L = \begin{bmatrix} 1 & 0 & 0 \\ 2 & 1 & 0 \\ 1 & 0 & 1 \end{bmatrix}, \qquad U = \begin{bmatrix} 1 & 1 & 1 \\ 0 & -3 & -3 \\ 0 & 0 & -2 \end{bmatrix}$$
