Edge-triggered, outputs change only at control signal’s edges

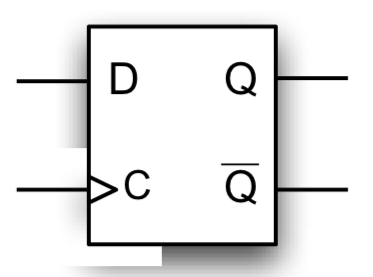

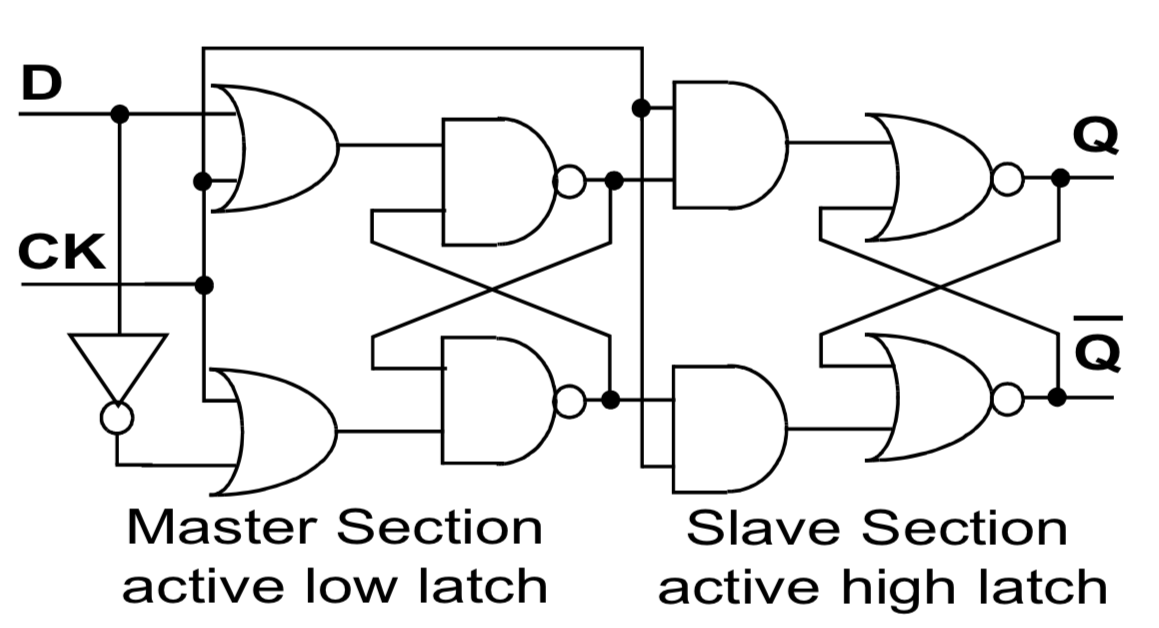

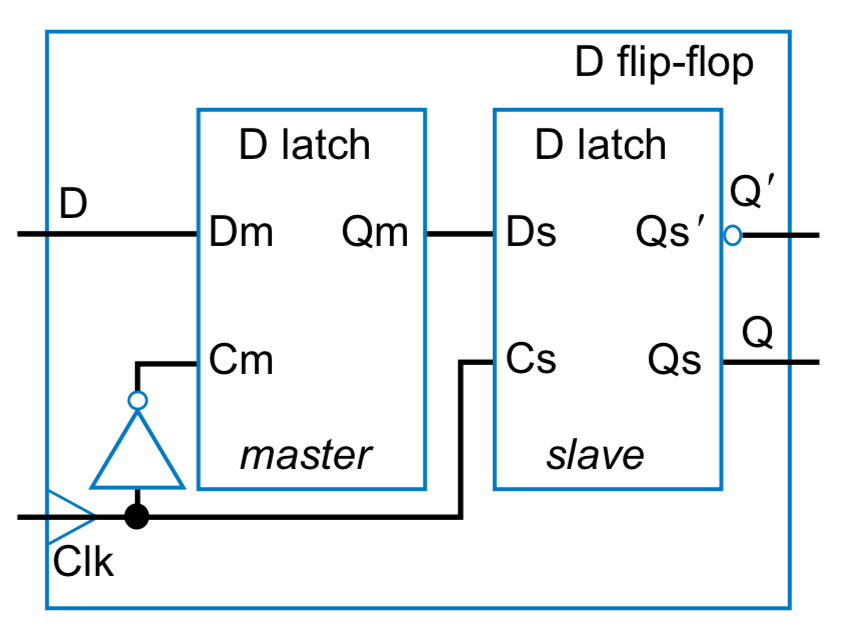

D FLIP-FLOP

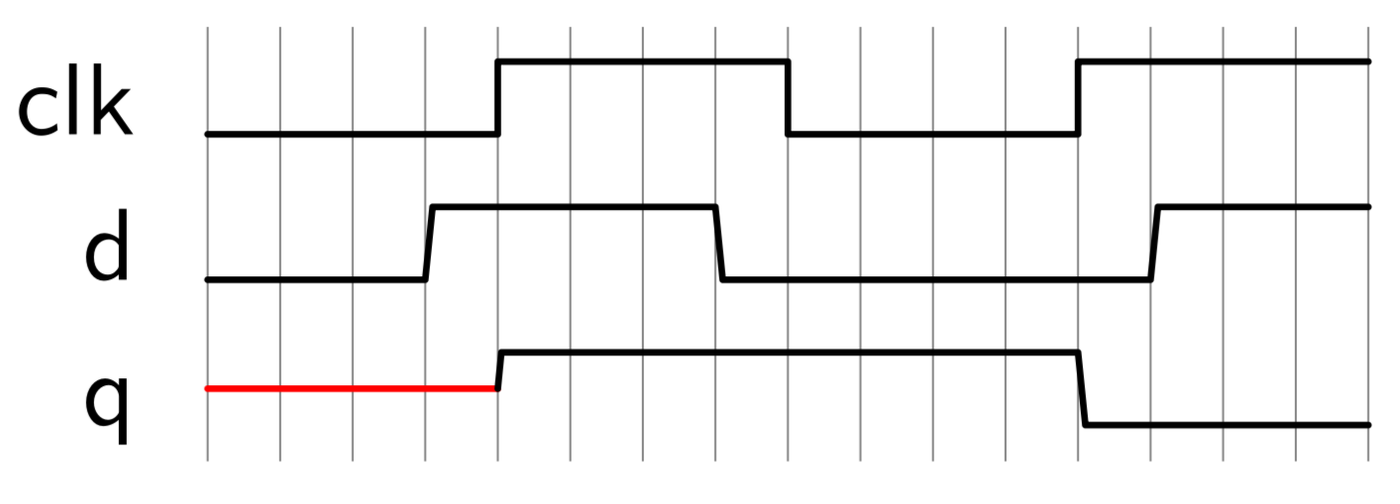

Q takes on value of D at rising edge of C.

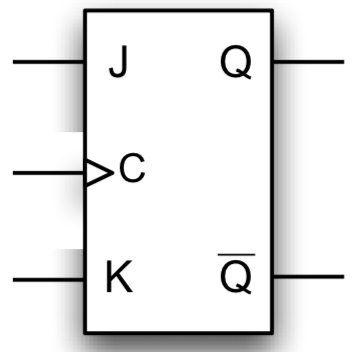

J-K FLIP-FLOP
Q becomes 1 if J is asserted at rising edge, and 0 if K is asserted.
If both J and K asserted, Q toggles at rising edge of clock.
Truth table
| J | K | Q+ |
|---|---|---|
| 0 | 0 | Q |
| 1 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 1 | Q’ |

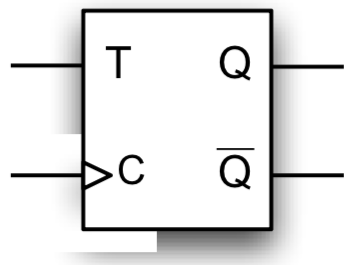

T FLIP-FLOP
Q toggles at rising edge if T=1
Truth table
| T | Q+ |
|---|---|
| 0 | Q |
| 1 | Q’ |

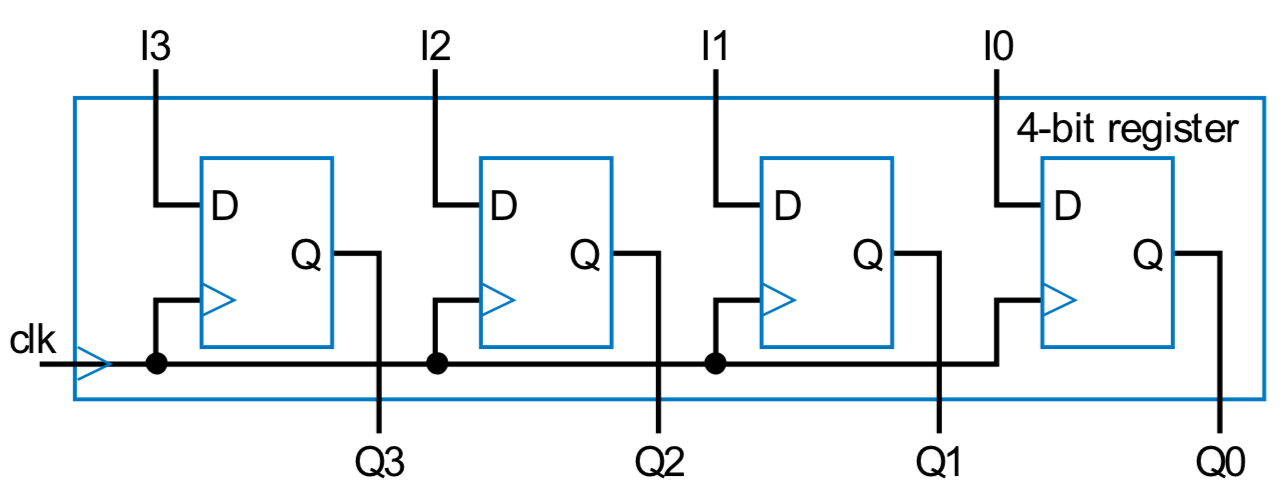

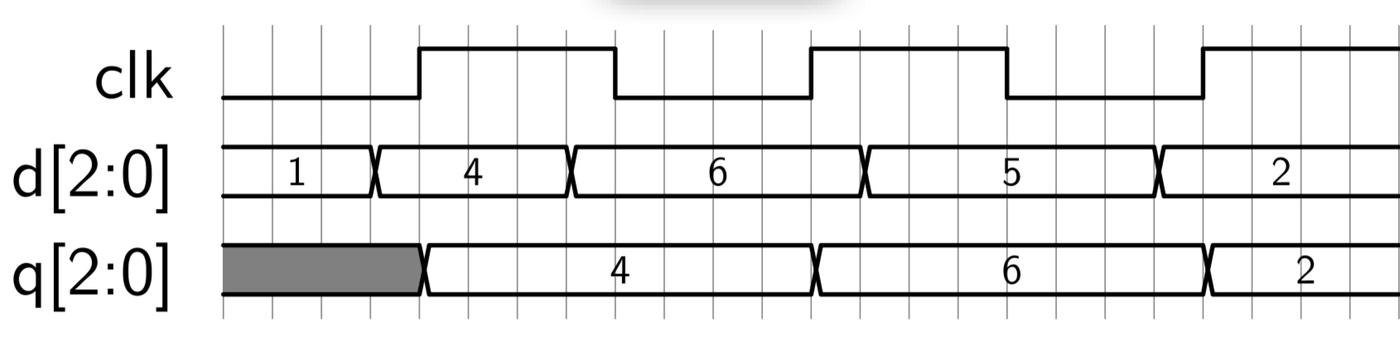

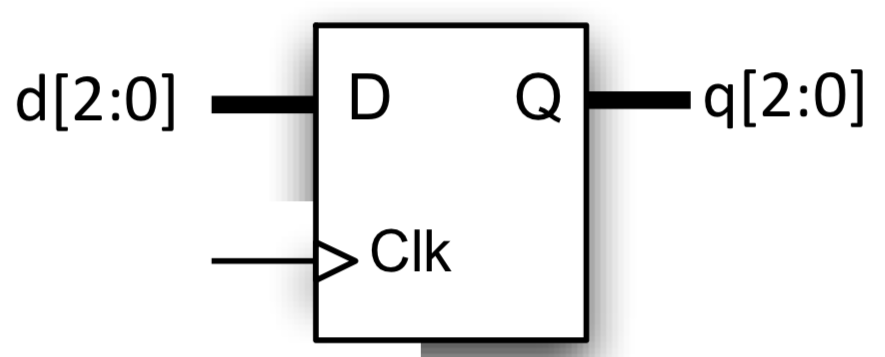

REGISTER
Formed by combining D FLIP-FLOPS
